Matrix Series
Matrix Series combines bold architectural expression with the simplicity of a concealed fixing system. Designed to give architects greater creative freedom, the range enables striking façades with clean lines, depth and texture that elevate contemporary building design.
Profiles
Materials & colour
Steel
Essentials Range
LUX Range
Aluminium
For Matrix & Pulse in an aluminium finish, our Kingspan Architectural Finish Studio offers a bespoke approach to colour by sourcing and matching finishes to your design intent.Highlights
Five distinct profiles available
Design flexibility: Install vertically or horizontally to achieve the desired architectural expression
Secret-fix system: Concealed clip fixing delivers clean, uninterrupted lines with no visible fasteners
Compatible with Kingspan wall systems: Designed to be fixed directly to Kingspan's range of Karrier Panels
Gallery
Technical information
- Aluminium
- 3004-H44 aluminium alloy
- Steel
- G300S steel with AM100 or AM150 metallic coating in accordance with AS 1397:2021. Paint coating in accordance with AS/NZS 2728:2013.
- Steel: 0.55mm & 0.75mm G300S
- Aluminium: 0.9mm AA3004, H44
Aluminium
| Profile | 0.90mm kg/m² |
|---|---|

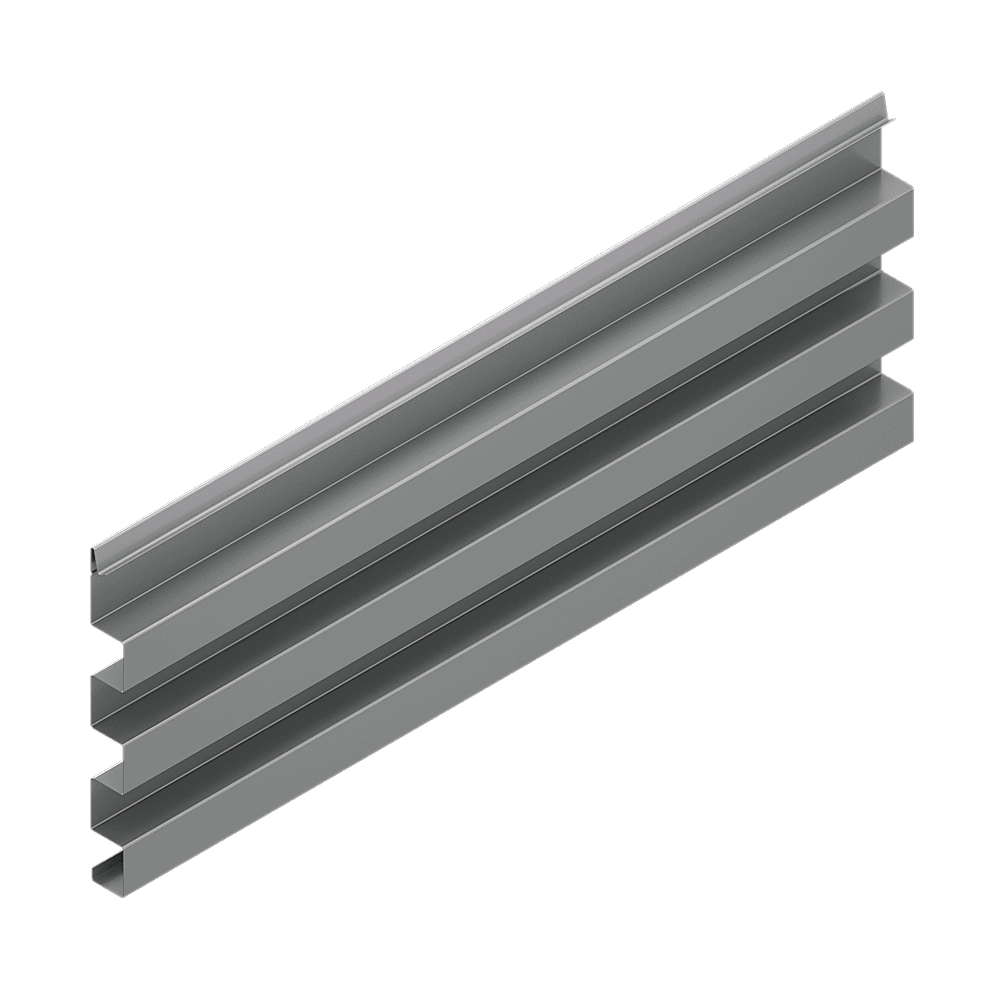

| MX-1 | 4.72 |
| MX-2 | 4.15 |
| MX-3 | 4.07 |
| MX-8 | 3.60 |
| MX-10 | 3.60 |
Steel
| Profile | 0.55 BMT kg/m² | 0.75 BMT kg/m² |
|---|---|---|
| MX-1 | 8.29 | 11.31 |
| MX-2 | 7.30 | 9.96 |
| MX-3 | 7.14 | 9.74 |
| MX-8 | - | 8.64 |
| MX-10 | - | 8.64 |
- Maximum length
- 8000 mm
- Minimum length
- 1200 mm
- Length
- ± 5 mm
- Width
- ± 3 mm
- Height
- ± 2 mm
- Standard cover width
- 305 mm
- Method
- Secret-fix via a clip system
- Material
- Galvanised steel for steel sheets. Stainless steel for aluminium sheets.
- Clips
- Panel clip and starter clip
| Test | Test Method | Aluminium Results | Steel Results |
|---|---|---|---|
| Ignitability(Ignitability Index) | AS/NZS: 1530.3: 1999 | 0 | 0 |
| Flame Spread(Spread of Flame Index) | 0 | 0 | |
| Heat Release(Heat Evolved Index) | 0 | 0 | |
| Smoke Release(Smoke Developed Index) | 4 | 0-2 |
NCC C2D10(6)(e) requires pre-finished metal sheeting to have a surface finish not exceeding 1mm thick and a Spread of Flame Index no greater than ‘0’.
Specific span performance can be provided by Kingspan Technical Services on a project-by-project basis.
FAQs
Matrix Series is available in steel and aluminium. Material options and finishes vary depending on project requirements.
Yes. Matrix Series is suitable for both vertical and horizontal installation and uses a concealed clip fixing system for a clean, secret-fix appearance.
Matrix Series is available in a wide range of colours and finishes. Contact our team to discuss standard and project-specific colour options to achieve your desired architectural outcome.
Kingspan provides technical support throughout the design and specification process, including project-specific structural advice, installation guidance and product training where required.
The Kingspan Architectural Finish Studio gives architects greater freedom when specifying Matrix and Pulse in pre-coated aluminium. Rather than choosing from a fixed colour palette, we work with you to source finishes that align with your project's design intent, subject to availability and project requirements.
